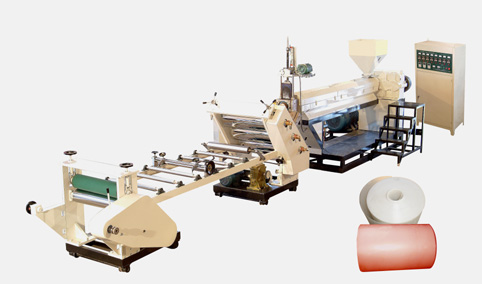

Plastic sheet extruder is developed by taking the advance technology from both home and abroad into consideration. It`s applicable to producing PP`PE and PS sheet, which are used to produce drinking cup. ice-cream cup, jelly cup and so on.

Feature: 1. The main parts such as screw, roller and Tdie are made 38CRMOALA , which have given nitrogen treatment, so they are wearable.

2. Large in length-diameter ratio, good in plastic zing. The property of sheet is guaranteed.

3.As adoption of advanced electromore, the production effciency is improved.

4.It adopts motor up-down device for replacing filter net in the part of the die head, so as to make operation easy and improve production efficiency.

Specifications :

1. Sheet width :670mm

2. Sheet Thickness : 0.3-1.2mm

3. Screw Diameter: 110mm

4. Main Motor Power :45KW

5.Max.Yield : 135Kg/h

6.Total Power : 65Kw

7. Over all diameter( LongxWidthxxHigh) :11 X 2 X1.8M
